Dräger CMS Chips

Dräger

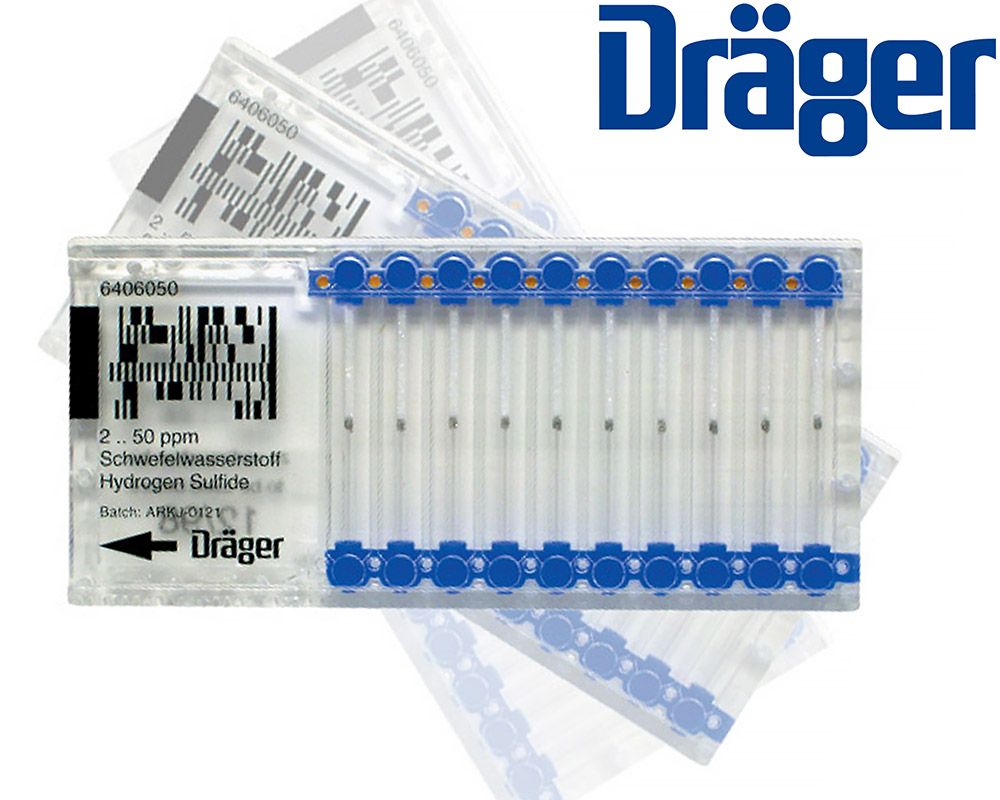

Each Dräger chip contains ten measurement capillaries filled with a substance-specific reagent system. Compared to other measurement systems, chemical reagent systems have distinct advantages. One reason for this is that it is possible to supplement the reacting layer with one or more pre-layers to adsorb moisture, to trap interfering substances, or to convent substances into measurable substances. This supports a substance-specific result of the measurement. Furthermore cross- sensitivities can be analyzed and tested in detail. This detailed knowledge provides a means for controlling and correcting for cross-sensitivities.

The reactive preparations necessary for detection are kept in hermetically-sealed glass capillaries until needed. The housing of the chip also protects the capillaries from possible external mechanical or chemical influences. When the chip is inserted into the analyzer, all information required for detection is transferred to the analyzer by means of a bar code:

•    Type of gas
•    Measuring range
•    Measuring time
•    Parameters for the calibration function
•    Required flow rate

View Dräger CMS Product Data Sheet [PDF]

View Dräger CMS Frequently Asked Questions [PDF]



Dräger CMS Chips are available for the following substances:

Substance Measurement Range SKU
 Acetic Acid 2-50 PPM 6406330
 Acetone 40-600 PPM 6406470
 Ammonia   0.2-5.0 PPM 6406550
 Ammonia  2.0-50 PPM 6406130
 Ammonia  10-150 PPM 6406020
 Ammonia  100-2000 PPM 6406570
 Benzene 50 PPB-2500PPB 6406600
 Benzene 0.2-10 PPM 6406030
 Benzene 0.5-10 PPM 6406160
 Benzene 10-250 PPM 6406280
 Butadiene 1.0-25 PPM  6406460
 Carbon Dioxide 200-3000 PPM 6406190
 Carbon Dioxide 1000-25000 PPM 6406070
 Carbon Dioxide 1.0-20 VOL % 6406210
 Carbon Dioxide 5.0-150 PPM 6406080
 Chlorine 0.2-10 PPM 6406010
 Ethanol 100-2500 PPM 6406370
 Ethylene Oxide 0.4-5.0 PPM 6406580
 Hydrogen Cyanide 2.0-50 PPM  6406100
 Hydrochloric Acid 1.0-25 PPM 6406090
 Hydrochloric Acid 20-500 PPM 6406140
 Hydrogen Peroxide 0.3-2 PPM 6406440
 Hydrogen Sulfide  0.2-5 PPM 6406520
 Hydrogen Sulfide  2.0-50 PPM 6406050
 Hydrogen Sulfide  20-500 PPM 6406150
 Hydrogen Sulfide 100-2500 PPM 6406220
 Mercaptan  0.25-6.0 PPM 6406360
 Methanol 20-500 PPM  6406380
 Methylene Chloride 20-400 PPM  6406510
 Meth Tert Butyl Ether 10-200  6406530
 Nitrogen Dioxide 0.5-25  6406120
 Nitrous Fumes 0.5-15 PPM 6406060
 Nitrous Fumes 10-200 PPM 6406240
 Ozone  25-1000 PPB 6406430
 Oxygen 1.0-30 Vol. %  6406490
 Pet. Hydrocarbons 20-500 PPM   6406200
 Pet. Hydrocarbons 100-3000 PPM  6406270
 Perchloroethylene 5.0-500 PPM   6406040
 Phosgene 0.05-2.0 PPM   6406340
 Phosphine 0.1-2.5 PPM  6406400
 Phosphine 1.0-25 PPM   6406410
 Phosphine 20-500 PPM  6406420
 Phosphine 200-5000 PPM   6406500
 Propane 100-2000 PPM   6406310
 Iso-Propanol 40-1000 PPM   6406390
 Sulfer Dioxide 0.4-10 PPM   6406110
 Sulfer Dioxide 5.0-150 PPM   6406180
 Styrene 2.0-40 PPM   6406560
 Toluene 10-300 PPM   6406250
 Trichloroethylene 5.0-100 PPM   6406320
 Vinyl Chloride 0.3-10 PPM   6406170
 Vinyl Chloride 10-250 PPM  6406230
 Water Vapor 0.4-10.0 MG/L  6406450
 Xylene 10-300 PPM  6406260
 TRAINING TRAINING  6406290



Grouped product items
SKU Product Name Qty
6406330 CMS Chip - Acetic Acid - (2.0 - 50 ppm)
$99.00
6406470 CMS Chip - Acetone - (40 - 600 ppm)
$89.00
6406550 CMS Chip - Ammonia - (0.2 - 5.0 ppm)
$99.00
6406130 CMS Chip - Ammonia - (2.0 - 50 ppm)
$89.00
6406020 CMS Chip - Ammonia - (10 - 150 ppm)
$89.00
6406570 CMS Chip - Ammonia - (100 - 2000 ppm)
$89.00
6406600 CMS Chip - Benzene - (50 ppb - 2500 ppb)
$182.00
6406030 CMS Chip - Benzene - (0.2 ppm - 10 ppm)
$182.00
6406160 CMS Chip - Benzene - (0.5 ppm - 10 ppm)
$182.00
6406280 CMS Chip - Benzene - (10 ppm - 250 ppm)
$182.00
6406460 CMS Chip - Butadiene - (1.0 ppm - 25 ppm)
$99.00
6406190 CMS Chip - Carbon Dioxide - (200 ppm - 3000 ppm)
$89.00
6406070 CMS Chip - Carbon Dioxide - (1000 ppm - 25000 ppm)
$89.00
6406210 CMS Chip - Carbon Dioxide - (1.0 - 20 VOL %)
$89.00
6406080 CMS Chip - Carbon Monoxide - (5.0 ppm - 150 ppm)
$89.00
6406010 CMS Chip - Chlorine - (0.2 ppm - 10 ppm)
$89.00
6406370 CMS Chip - Ethanol - (100 ppm - 2500 ppm)
$99.00
6406580 CMS Chip - Ethylene Oxide - (0.4 ppm - 5.0 ppm)
$182.00
6406100 CMS Chip - CMS Hydrogen Cyanide 2-50 ppm
$89.00
6406090 CMS Chip - Hydrochloric Acid - (1.0 ppm - 25 ppm)
$99.00
6406140 CMS Chip - Hydrochloric Acid - (20 ppm - 500 ppm)
$99.00
6406440 CMS Chip - Hydrogen Peroxide - (0.3 ppm - 2 ppm)
$123.00
6406520 CMS Chip - Hydrogen Sulfide - (0.2 ppm - 5.0 ppm)
$89.00
6406050 CMS Chip - Hydrogen Sulfide - (2.0 ppm - 50 ppm)
$89.00
6406150 CMS Chip - Hydrogen Sulfide - (20 ppm - 500 ppm)
$89.00
6406220 CMS Chip - Hydrogen Sulfide - (100 ppm - 2500 ppm)
$89.00
6406360 CMS Chip - Mercaptan - (0.25 ppm - 6.0 ppm)
$123.00
6406380 CMS Chip - Methanol - (20 ppm - 500 ppm)
$99.00
6406510 CMS Chip - Methylene Chloride - (20 ppm - 400 ppm)
$99.00
6406530 CMS Chip - Meth Tert Butyl Ether - (10 ppm - 20 ppm)
$99.00
6406120 CMS Chip - Nitrogen Dioxide - (0.5 ppm - 25 ppm)
$89.00
6406060 CMS Chip - Nitrous Fumes - (0.5 ppm - 15 ppm)
$89.00
6406240 CMS Chip - Nitrous Fumes - (10 ppm - 200 ppm)
$89.00
6406430 CMS Chip - Ozone - (25 ppb - 1000 ppb)
$99.00
6406490 CMS Chip - Oxygen - (1.0% - 25% Vol.)
$129.00
6406200 CMS Chip - Petroleum Hydrocarbons - (20 ppm - 500 ppm)
$99.00
6406270 CMS Chip - Petroleum Hydrocarbons - (100 ppm - 3000 ppm)
$89.00
6406040 CMS Chip - Perchloroethylene - (5.0 ppm - 500 ppm)
$89.00
6406340 CMS Chip - Phosgene - (0.05 ppm - 2 ppm)
$99.00
6406400 CMS Chip - Phosphine - (0.1 ppm - 2.5 ppm)
$89.00
6406410 CMS Chip - Phosphine - (1.0 ppm - 25 ppm)
$89.00
6406420 CMS Chip - Phosphine - (20 ppm - 500 ppm)
$99.00
6406500 CMS Chip - Phosphine - (200 ppm - 5000 ppm)
$99.00
6406310 CMS Chip - Propane - (100 ppm - 2000 ppm)
$99.00
6406390 CMS Chip - Iso-Propanol - (40 ppm - 1000 ppm)
$99.00
6406110 CMS Chip - Sulfur Dioxide - (0.4 ppm - 10 ppm)
$89.00
6406180 CMS Chip - Sulfur Dioxide - (5.0 ppm - 150 ppm)
$89.00
6406560 CMS Chip - Styrene - (2.0 ppm - 40 ppm)
$99.00
6406250 CMS Chip - Toluene - (10 ppm - 300 ppm)
$99.00
6406320 CMS Chip - Trichlorethylene - (5.0 ppm - 100 ppm)
$89.00
6406170 CMS Chip - Vinyl Chloride - (0.3 ppm - 10 ppm)
$99.00
6406230 CMS Chip - Vinyl Chloride - (10 ppm - 250 ppm)
$99.00
6406450 CMS Chip - Water Vapor - (0.4-10.0 MG/L)
$99.00
6406260 CMS Chip - Xylene - (10 ppm - 300 ppm)
$104.00
6406290 CMS Chip - TRAINING CHIP - SIMULATION
$26.00
